HVHZ IMPACT SWINGING DOORS

FLEETWOOD SERIES-3

HVHZ IMPACT SWINGING DOORS

Fleetwood Series 3900-T swing doors are part of Fleetwood’s luxury door line designed for high-end residential applications. These doors are known for their superior quality, high performance, and elegant design. They are made from durable materials and are available in a variety of finishes to match the aesthetic of any luxury home.

The 3900-T series features a thermally broken frame design with narrow sightlines to provide maximum glass exposure and natural light. The doors are available in single or double configurations with a variety of options, including custom sizes, hardware, and finishes. They can be installed as a standalone feature or as part of a larger glass wall system.

Fleetwood is known for its commitment to sustainability and energy efficiency, and the 3900-T series is no exception. These doors are designed to meet or exceed the most stringent energy codes and can be customized with insulated glass to enhance their energy-saving properties.

Overall, Fleetwood Series 3900-T swing doors are an excellent choice for homeowners looking for high-quality, luxury doors that offer superior performance, style, and sustainability.

impact swinging doors

ARCHITECTURAL DETAIL

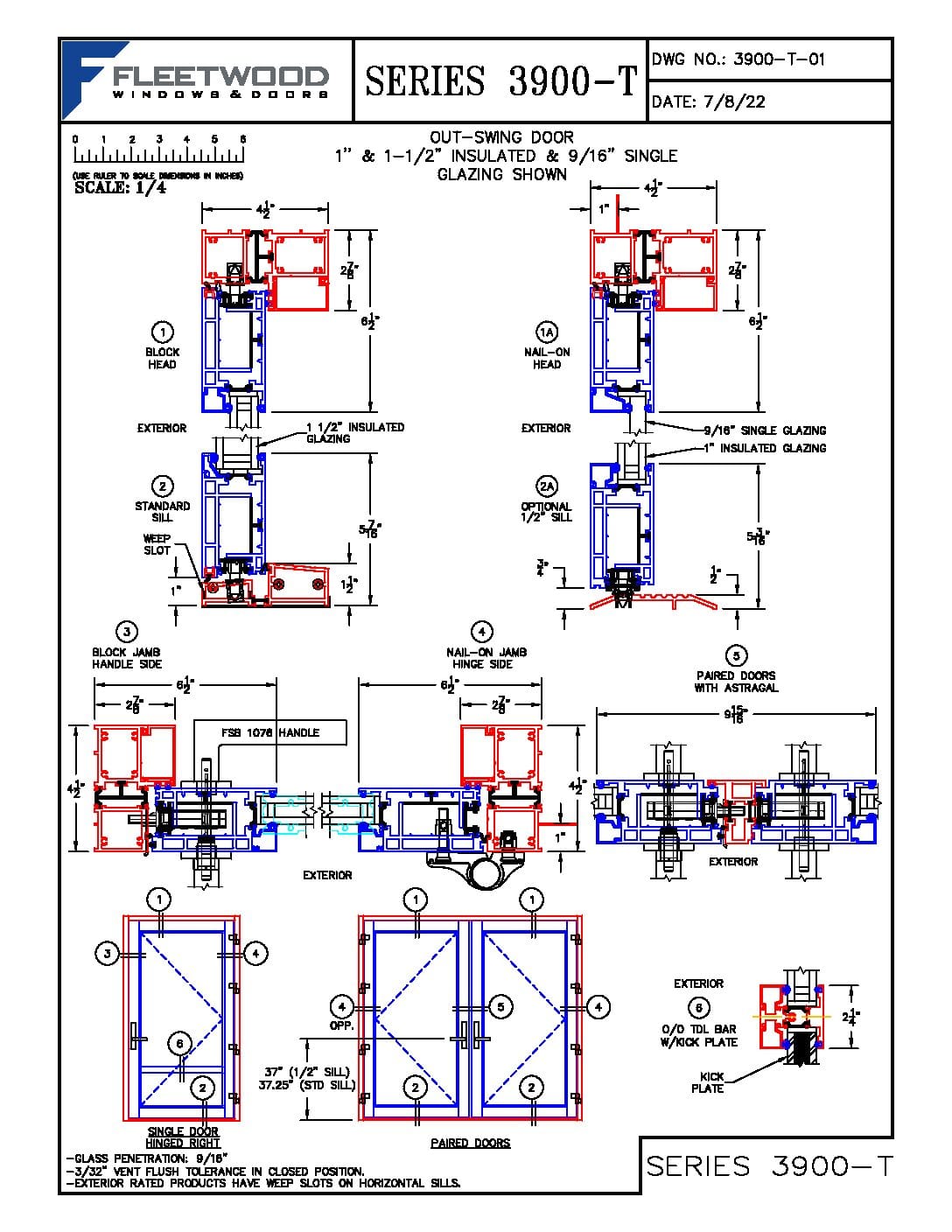

3900-T-01__OutSwing

L
K

3900-T-02__InSwing

L
K

3900-T-03__Transom_and_Narrow_Style_Fixed_Lites

L
K

3900-T-04__Wide_Style_Fixed_Lites

L
K

3900-T-05__IS_Pnl_with_Hopper

L
K

3900-T-06__IS_Transom_and_Narrow_Style_Fixed_Lites

L
K

3900-T-07__IS_Wide_Style_Fixed_Lites

L
K

3900-T-08__Arche-Duct_OutSwing

L
K

3900-T-09__Arche-Duct_InSwing

L
K

Hinged_Door_Sightlines

L
K

Anchor Location Worksheet

L
K

HVHZ FLORIDA PRODUCT APPROVAL
Fleetwood Swing Doors

17954.1 Thermally Broken Extruded Aluminum “Impact” Glazed Side Hinged Door – Outswing/Inswing (Single – X Configuration; 10’0 Nominal Height)

Limits of Use

  • Approved for use in HVHZ: Yes
  • Approved for use outside HVHZ: Yes
  • Impact Resistant: Yes
  • Design Pressure: N/A

Other: See INST 17954.1 for Design Pressure Ratings, any additional use limitations, installation instructions and product particulars.

Installation Instructions
FL17954_R7_II_(d) Inst 17954.1.pdf
Verified By: Lyndon F. Schmidt, P.E. 43409
Created by Independent Third Party: Yes
Evaluation Reports
FL17954_R7_AE_(e) Eval 17954.1.pdf
Created by Independent Third Party: Yes

Installation Instructions
FL17954_R7_II_(d) Inst 17954.2.pdf
Verified By: Lyndon F. Schmidt, P.E. 43409
Created by Independent Third Party: Yes
Evaluation Reports
FL17954_R7_AE_(e) Eval 17954.2.pdf
Created by Independent Third Party: Yes

17954.2 Thermally Broken Extruded Aluminum “Impact” Glazed Side Hinged Door – Outswing/Inswing (Double – XX Configuration; 10’0 Nominal Height

Limits of Use

  • Approved for use in HVHZ: Yes
  • Approved for use outside HVHZ: Yes
  • Impact Resistant: Yes
  • Design Pressure: N/A

Other: See INST 17954.2 for Design Pressure Ratings, any additional use limitations, installation instructions and product particulars.

17954.3 Thermally Broken Extruded Aluminum “Impact” Glazed Side Hinged Door – Outswing/Inswing (Single with Sidelite(s) – XO or OX, XOO or OOX, OXO Configurations; 10’0 Nominal Height)

Limits of Use

  • Approved for use in HVHZ: Yes
  • Approved for use outside HVHZ: Yes
  • Impact Resistant: Yes
  • Design Pressure: N/A

Other: See INST 17954.3 for Design Pressure Ratings, any additional use limitations, installation instructions and product particulars.

Installation Instructions
FL17954_R7_II_(d) Inst 17954.3.pdf
Verified By: Lyndon F. Schmidt, P.E. 43409
Created by Independent Third Party: Yes
Evaluation Reports
FL17954_R7_AE_(e) Eval 17954.3.pdf
Created by Independent Third Party: Yes

Installation Instructions
FL17954_R7_II_(d) Inst 17954.4.pdf
Verified By: Lyndon F. Schmidt, P.E. 43409
Created by Independent Third Party: Yes
Evaluation Reports
FL17954_R7_AE_(e) Eval 17954.4.pdf
Created by Independent Third Party: Yes

17954.4 Thermally Broken Extruded Aluminum “Impact” Glazed Side Hinged Door – Outswing/Inswing (Single with Sidelite(s) – XO or OX, XOO or OOX, OXO Configurations; 10’0 Nominal Height)

Limits of Use

  • Approved for use in HVHZ: Yes
  • Approved for use outside HVHZ: Yes
  • Impact Resistant: Yes
  • Design Pressure: N/A

Other: See INST 17954.4 for Design Pressure Ratings, any additional use limitations, installation instructions and product particulars.

17954.5 Thermally Broken Extruded Aluminum “Impact” Glazed Side Hinged Door – Outswing/Inswing (Double with Sidelites – OXXO Configuration; 10’0 Nominal Height

Limits of Use

  • Approved for use in HVHZ: Yes
  • Approved for use outside HVHZ: Yes
  • Impact Resistant: Yes
  • Design Pressure: N/A

Other: See INST 17954.5 for Design Pressure Ratings, any additional use limitations, installation instructions and product particulars.

Installation Instructions
FL17954_R7_II_(d) Inst 17954.5.pdf
Verified By: Lyndon F. Schmidt, P.E. 43409
Created by Independent Third Party: Yes
Evaluation Reports
FL17954_R7_AE_(e) Eval 17954.5.pdf
Created by Independent Third Party: Yes

Installation Instructions
FL17954_R7_II_(d) Inst 17954.6.pdf
Verified By: Lyndon F. Schmidt, P.E. 43409
Created by Independent Third Party: Yes
Evaluation Reports
FL17954_R7_AE_(e) Eval 17954.6.pdf
Created by Independent Third Party: Yes

17954.6 Thermally Broken Extruded Aluminum “Impact” Glazed Side Hinged Door – Outswing/Inswing (Double with Sidelites – OXXO Configuration; 10’0 Nominal Height

Limits of Use

  • Approved for use in HVHZ: Yes
  • Approved for use outside HVHZ: Yes
  • Impact Resistant: Yes
  • Design Pressure: N/A

Other: See INST 17954.6 for Design Pressure Ratings, any additional use limitations, installation instructions and product particulars.

17954.7 Thermally Broken Extruded Aluminum “Impact” Glazed Side Hinged Door – Outswing/Inswing (Single with Sidelite(s) and Transom – O/XO or O/OX, O/XOO or O/OOX, O/OXO Configurations; 10’0 Nominal Height Panels with 4’0 Nominal Height Transom)

Limits of Use

  • Approved for use in HVHZ: Yes
  • Approved for use outside HVHZ: Yes
  • Impact Resistant: Yes
  • Design Pressure: N/A

Other: See INST 17954.7 for Design Pressure Ratings, any additional use limitations, installation instructions and product particulars.

Installation Instructions
FL17954_R7_II_(d) Inst 17954.7.pdf
Verified By: Lyndon F. Schmidt, P.E. 43409
Created by Independent Third Party: Yes
Evaluation Reports
FL17954_R7_AE_(e) Eval 17954.7.pdf
Created by Independent Third Party: Yes

Installation Instructions
FL17954_R7_II_(e) Inst 17954.8.pdf
Verified By: Lyndon F. Schmidt, P.E. 43409
Created by Independent Third Party: Yes
Evaluation Reports
FL17954_R7_AE_(e) Eval 17954.8.pdf
Created by Independent Third Party: Yes

17954.8 Thermally Broken Extruded Aluminum “Impact” Glazed Side Hinged Door – Inswing/Outswing (Single – X Configuration; 12’0 Nominal Height)

Limits of Use

  • Approved for use in HVHZ: Yes
  • Approved for use outside HVHZ: Yes
  • Impact Resistant: Yes
  • Design Pressure: N/A

Other: See INST 17954.8 for Design Pressure Ratings, any additional use limitations, installation instructions and product particulars.
